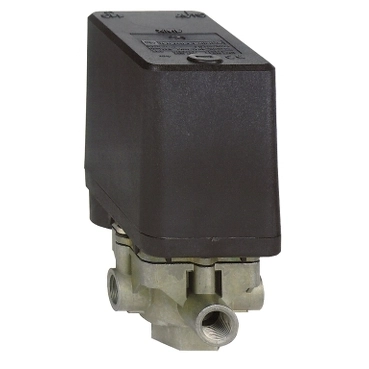

Tlačni senzor XMP, 25 bara, G 1/4 ženski, 2 NC, bez upravljačkog tipa

Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	2
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	No
Switching capacity at AC-3, 240 V	0
Initial setting	3500 - 25000
End setting	100 - 20.5
Max. operation pressure	25,000
Number of auxiliary contacts as change-over contact	0
Type of electric connection	Screw connection
Explosion-proof	No
Degree of protection (IP)	IP54
Initial value measuring range pressure	0
Switch off pressure	0.1 - 20.5
Rated voltage Ue at AC 50 Hz	230 - 400
Rated voltage Ue at AC 60 Hz	230 - 400
Rated voltage Ue at DC	0 - 0
Bursting pressure	100
Type of pressure connection
Engaging pressure	3.5 - 25
Electronic version	No
End value measuring range pressure	0
Suitable as 2-point controller	Yes
Suitable as limiter	Yes
Suitable as guard	No
Max. test pressure	0
Medium temperature	0 - 70
With hand operation	No
Adjustable current range	0 - 0
Pressure-switching differential	20
