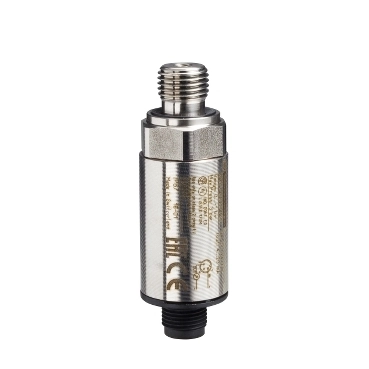

Tlačni senzor XMLG, 0.. 400 bara, G 1/4A (muški), 24 V , 4..20 mA

Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	No
Switching capacity at AC-3, 240 V	0
Initial setting	0 - 400000
End setting	0 - 400000
Max. operation pressure	400,000
Number of auxiliary contacts as change-over contact	0
Type of electric connection	Other
Explosion-proof	No
Degree of protection (IP)	IP66
Initial value measuring range pressure	0
Switch off pressure	0 - 400
Rated voltage Ue at AC 50 Hz	0 - 0
Rated voltage Ue at AC 60 Hz	0 - 0
Rated voltage Ue at DC	24 - 24
Bursting pressure	900
Type of pressure connection
Engaging pressure	0 - 400
Electronic version	Yes
End value measuring range pressure	0
Suitable as 2-point controller	No
Suitable as limiter	No
Suitable as guard	Yes
Max. test pressure	800
Medium temperature	-15 - 125
With hand operation	No
Adjustable current range	0 - 0
Pressure-switching differential	0
