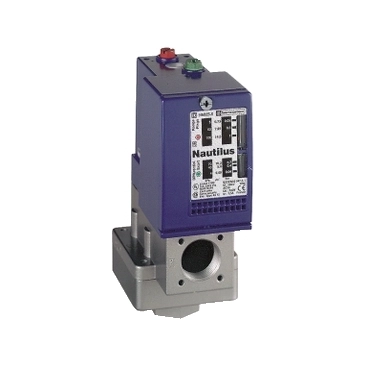

Tlačna sklopka XMLC 4 bara, 2 podesiva praga, 2 C/O

Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	No
Switching capacity at AC-3, 240 V	0
Initial setting	300 - 4000
End setting	150 - 3830
Max. operation pressure	500,000
Number of auxiliary contacts as change-over contact	2
Type of electric connection	Screw connection
Explosion-proof	No
Degree of protection (IP)	IP66
Initial value measuring range pressure	0
Switch off pressure	0.15 - 3.83
Rated voltage Ue at AC 50 Hz	120 - 240
Rated voltage Ue at AC 60 Hz	120 - 240
Rated voltage Ue at DC	250 - 250
Bursting pressure	18
Type of pressure connection
Engaging pressure	0.3 - 4
Electronic version	Yes
End value measuring range pressure	0
Suitable as 2-point controller	Yes
Suitable as limiter	No
Suitable as guard	Yes
Max. test pressure	9
Medium temperature	0 - 160
With hand operation	No
Adjustable current range	0 - 0
Pressure-switching differential	2
