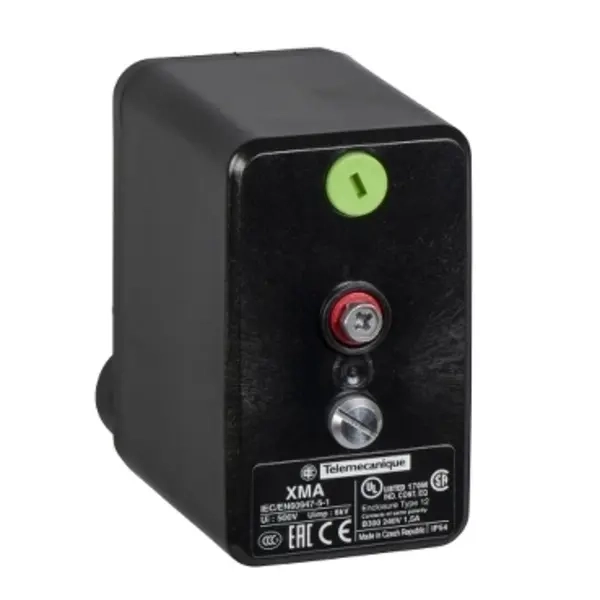

Tlačna sklopka XMA 12 bara, 2 podesiva praga, 1 C/O

Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	No
Switching capacity at AC-3, 240 V	0
Initial setting	1300 - 12000
End setting	300 - 10300
Max. operation pressure	15,000
Number of auxiliary contacts as change-over contact	1
Type of electric connection	Screw connection
Explosion-proof	No
Degree of protection (IP)	IP54
Initial value measuring range pressure	0
Switch off pressure	0.3 - 10.3
Rated voltage Ue at AC 50 Hz	120 - 240
Rated voltage Ue at AC 60 Hz	120 - 240
Rated voltage Ue at DC	250 - 250
Bursting pressure	30
Type of pressure connection
Engaging pressure	1.3 - 12
Electronic version	No
End value measuring range pressure	0
Suitable as 2-point controller	Yes
Suitable as limiter	Yes
Suitable as guard	Yes
Max. test pressure	27
Medium temperature	0 - 55
With hand operation	No
Adjustable current range	0 - 0
Pressure-switching differential	2
