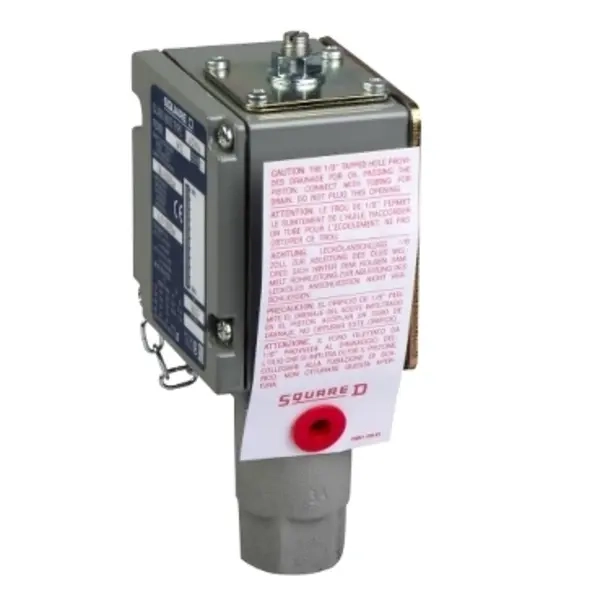

Tlačna sklopka ACW 210 bara, 2 podesiva praga, 1CO

Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	No
Switching capacity at AC-3, 240 V	0
Initial setting	28000 - 210000
End setting	0 - 0
Max. operation pressure	690,000
Number of auxiliary contacts as change-over contact	1
Type of electric connection	Screw connection
Explosion-proof	No
Degree of protection (IP)	IP65
Initial value measuring range pressure	2,800,000
Switch off pressure	28 - 210
Rated voltage Ue at AC 50 Hz	24 - 500
Rated voltage Ue at AC 60 Hz	0 - 0
Rated voltage Ue at DC	24 - 600
Bursting pressure	0
Type of pressure connection	G 3/8 inch
Engaging pressure	0 - 0
Electronic version	Yes
End value measuring range pressure	21,000,000
Suitable as 2-point controller	Yes
Suitable as limiter	No
Suitable as guard	No
Max. test pressure	0
Medium temperature	-30 - 125
With hand operation	No
Adjustable current range	0 - 0
Pressure-switching differential	0
