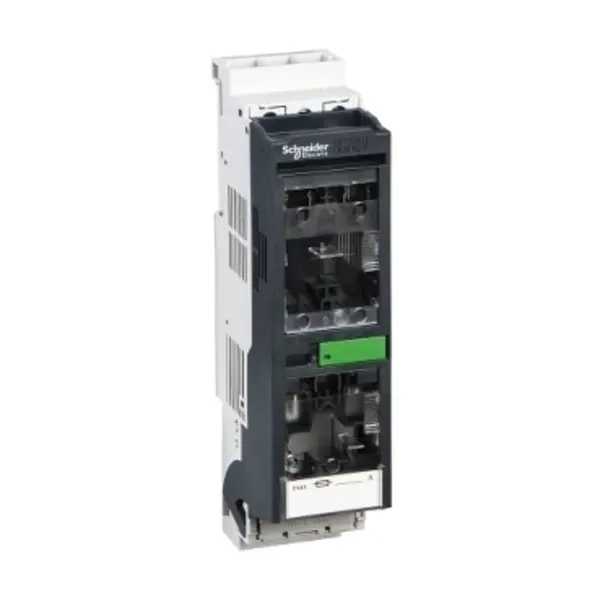

Tijelo prekidača za osigurače ISFT, 3 pola 3 F, DIN NH000, 100 A

Additional information

Tip	Rastavna sklopka

Rated permanent current Iu	100
Number of poles	3
Conditioned rated short-circuit current Iq	100
Degree of protection (IP), front side	IP20
Suitable for fuses	NH000
Motor drive integrated	No
Type of electrical connection of main circuit	Bolt connection
Version as emergency stop installation	No
Type of control element	Other
Version as main switch	No
Version as safety switch	No
Rated operation power at AC-23, 400 V	0
Rated short-time withstand current lcw	0
Suitable for ground mounting	No
Suitable for front mounting 4-hole	No
Suitable for busbar mounting	Yes
Max. rated operation voltage Ue AC	690
With error protection	No
Motor drive optional	No
Position control element	Front side
