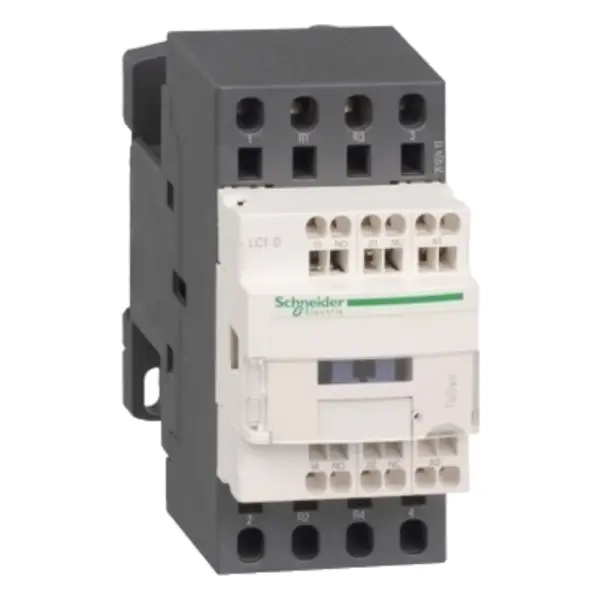

SKLOPNIK TESYS_D 4P(2NO+2NC) 40A 48VAC

Additional information

Modular version	No
Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	40
Rated control supply voltage Us at AC 50HZ	48 - 48
Rated control supply voltage Us at AC 60HZ	48 - 48
Rated control supply voltage Us at DC	- - -
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Rated operation current Ie at AC-4, 400 V	0
Rated operation power Ie at AC-4, 400 V	0
