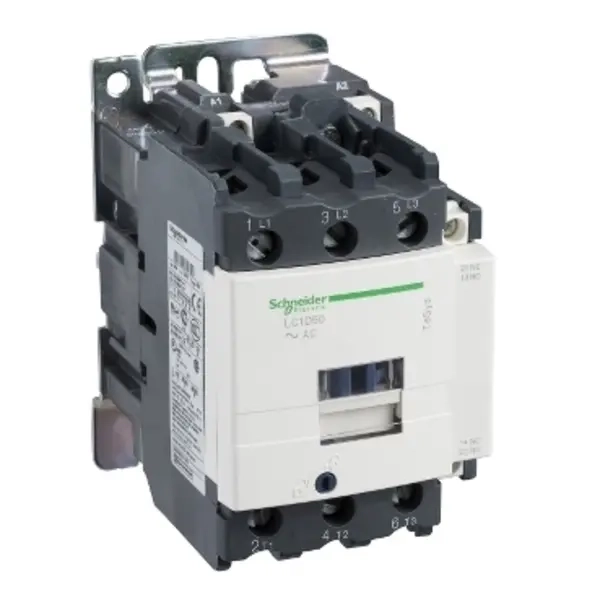

SKLOPNIK 50A 3P 1NO+1NC 440V 50/60HZ

Cijena (bez PDV-a)

108,63

Šifra artikla: LC1D50R7

Raspoloživost: Na upit

Additional information

Tip

Sklopnik

Broj polova

3

Kontakti

1NO+1NC

Napon svitka (V)

440V50/60HZ

Snaga AC3 (Kw)

22

In AC3 (A)

50

Modular version No
Rated operation power at AC-3, 400 V 22
Number of main contacts as normally open contact 3
Number of normally closed contacts as main contact 0
Number of auxiliary contacts as normally open contact 1
Number of auxiliary contacts as normally closed contact 1
Rated operation current Ie at AC-3, 400 V 50
Rated operation current Ie at AC-1, 400 V 80
Rated control supply voltage Us at AC 50HZ 440 - 440
Rated control supply voltage Us at AC 60HZ 440 - 440
Rated control supply voltage Us at DC - - -
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Rated operation current Ie at AC-4, 400 V 0
Rated operation power Ie at AC-4, 400 V 11
