Additional information

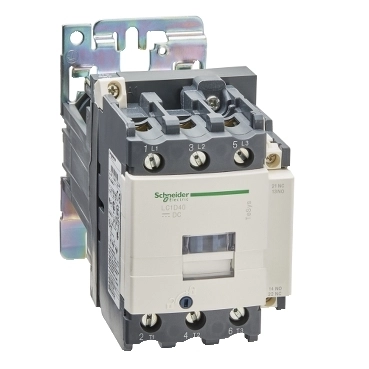

| Tip | Sklopnik |
|---|---|
| Broj polova | 3 |
| Kontakti | 1NO+1NC |
| Napon svitka (V) | 24VDC |
| Snaga AC3 (Kw) | 18,5 |
| In AC3 (A) | 40 |
| Modular version | No |
|---|---|
| Rated operation power at AC-3, 400 V | 19 |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-3, 400 V | 40 |
| Rated operation current Ie at AC-1, 400 V | 60 |
| Rated control supply voltage Us at AC 50HZ | - - - |
| Rated control supply voltage Us at AC 60HZ | - - - |
| Rated control supply voltage Us at DC | 24 - 24 |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V | 0 |
| Rated operation power Ie at AC-4, 400 V | 9 |
