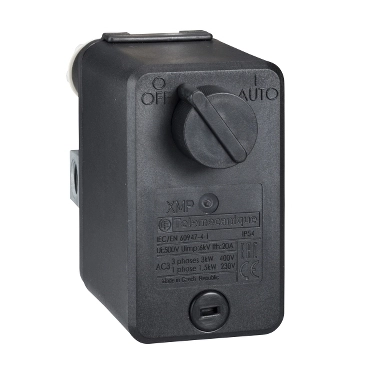

SKLOPKA TLAČNA

Rated operation power at AC-3, 400 V	2
Number of main contacts as normally open contact	0
Number of normally closed contacts as main contact	3
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	1
Rated operation current Ie at AC-3, 400 V	0
Rated operation current Ie at AC-1, 400 V	0
With manual on/off switch	Yes
Switching capacity at AC-3, 240 V	0
Initial setting	1300 - 12000
End setting	300 - 10300
Max. operation pressure	12,000
Number of auxiliary contacts as change-over contact	0
Type of electric connection	Screw connection
Explosion-proof	No
Degree of protection (IP)	IP54
Initial value measuring range pressure	130,000
Switch off pressure	0.3 - 10.3
Rated voltage Ue at AC 50 Hz	230 - 400
Rated voltage Ue at AC 60 Hz	230 - 400
Rated voltage Ue at DC	24 - 24
Bursting pressure	30
Type of pressure connection	G 3/8 inch
Engaging pressure	1.3 - 12
Electronic version	Yes
End value measuring range pressure	1,200,000
Suitable as 2-point controller	Yes
Suitable as limiter	Yes
Suitable as guard	Yes
Max. test pressure	0
Medium temperature	0 - 70
With hand operation	Yes
Adjustable current range	- - -
Pressure-switching differential	8
