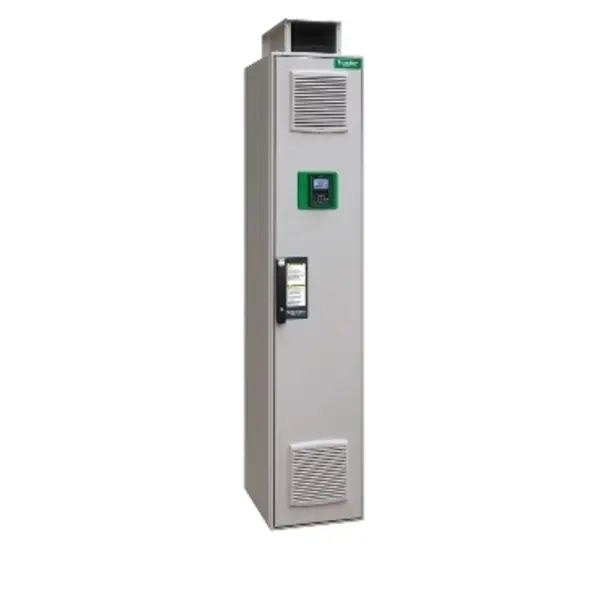

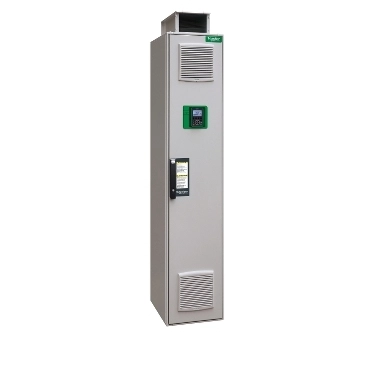

Samostoj. Frekvencijski pretvarač ATV930 – 110kW – 400/440V – bez kočione jedinice – IP21
Cijena (bez PDV-a)
12.416,00€
Raspoloživost: Na upit
Additional information
| Tip | Frekventni regulator |
|---|---|
| IP Stupanj zaštite | 21 |
| Snaga (Kw) | 110 |
| Width | 400 |
|---|---|
| Height | 2,150 |
| Depth | 605 |
| With control unit | Yes |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 3 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for CAN | Yes |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for MODBUS | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Degree of protection (IP) | IP21 |
| With PC connection | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Mains voltage | 380 - 440 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | Yes |
| Number of HW-interfaces PROFINET | 0 |
| Type of converter | Other |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | Yes |
| Max. output frequency | 500 |
| Max. output at linear load at rated output voltage | 110 |
| Max. output at quadratic load at rated output voltage | 0 |
| Relative symmetric net current tolerance | 10 |
| Relative symmetric net frequency tolerance | 5 |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Max. output voltage | 440 |
| Rated output current I2N | 211 |
