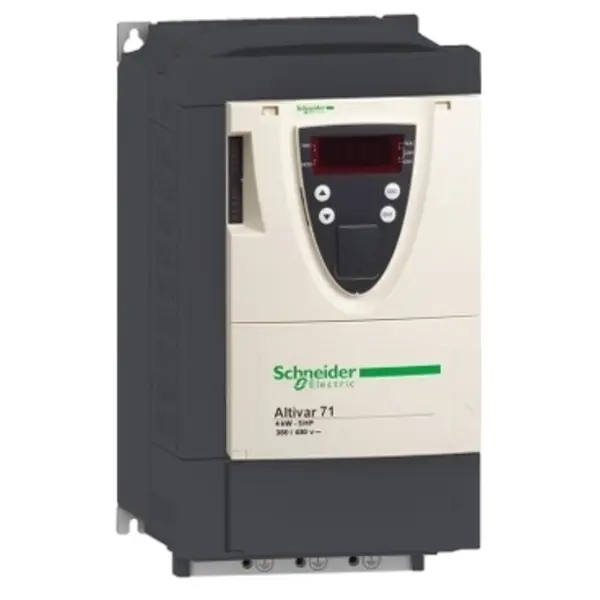

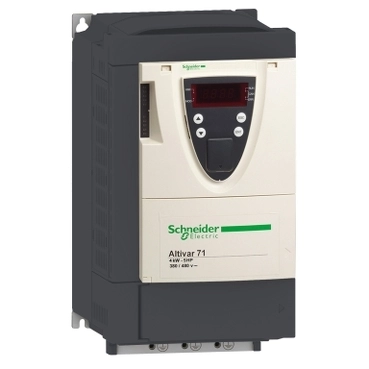

PRETVARAC FREK. 3KW 480V 3P

Additional information

Tip	Frekventni regulator
Snaga (Kw)	3

Width	155
Height	260
Depth	161
With control unit	Yes
Supporting protocol for LON	No
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	11
With optical interface	No
Supporting protocol for TCP/IP	No
Supporting protocol for ASI	No
Supporting protocol for PROFIBUS	Yes
Supporting protocol for CAN	Yes
Supporting protocol for INTERBUS	Yes
Supporting protocol for KNX	No
Supporting protocol for MODBUS	Yes
Supporting protocol for Data-Highway	No
Supporting protocol for DeviceNet	Yes
Supporting protocol for SUCONET	No
Supporting protocol for other bus systems	Yes
Degree of protection (IP)	IP20
With PC connection	Yes
Supporting protocol for SERCOS	No
Supporting protocol for INTERBUS-Safety	No
Mains voltage	380 - 480
Mains frequency	50/60 Hz
4-quadrant operation possible	Yes
Number of HW-interfaces PROFINET	0
Type of converter	I converter
Number of phases output	3
Number of phases input	3
Integrated breaking resistance	No
Application in industrial area permitted	Yes
Application in domestic- and commercial area permitted	Yes
Max. output frequency	599
Max. output at linear load at rated output voltage	3
Max. output at quadratic load at rated output voltage	0
Relative symmetric net current tolerance	10
Relative symmetric net frequency tolerance	5
Supporting protocol for AS-Interface Safety at Work	No
Supporting protocol for DeviceNet Safety	No
Supporting protocol for EtherNet/IP	Yes
Supporting protocol for Foundation Fieldbus	No
Supporting protocol for PROFINET CBA	No
Supporting protocol for PROFINET IO	No
Supporting protocol for PROFIsafe	No
Supporting protocol for SafetyBUS p	No
Max. output voltage	480
Rated output current I2N	8
