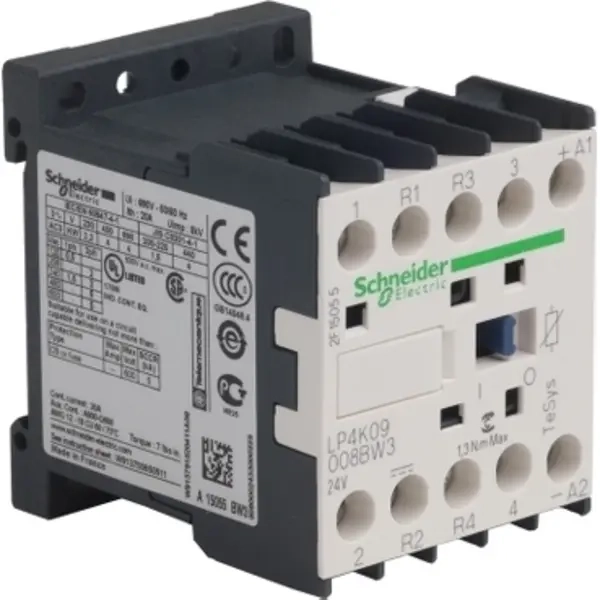

Motorski sklopnik TeSys K, 4P(2 NO + 2 NC), AC-1, <= 440 V 20 A, zavojnica 24 V DC
Cijena (bez PDV-a)
43,72€
Raspoloživost: Na upit
Additional information
| Tip | Sklopnik |
|---|---|
| Broj polova | 4 |
| Kontakti | 2NO+2NC |
| Napon svitka (V) | 24VDC |
| In AC3 (A) | 20 |
| Modular version | No |
|---|---|
| Rated operation power at AC-3, 400 V | 0 |
| Number of main contacts as normally open contact | 2 |
| Number of normally closed contacts as main contact | 2 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 0 |
| Rated operation current Ie at AC-1, 400 V | 20 |
| Rated control supply voltage Us at AC 50HZ | - - - |
| Rated control supply voltage Us at AC 60HZ | - - - |
| Rated control supply voltage Us at DC | 24 - 24 |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V | 0 |
| Rated operation power Ie at AC-4, 400 V | 0 |
