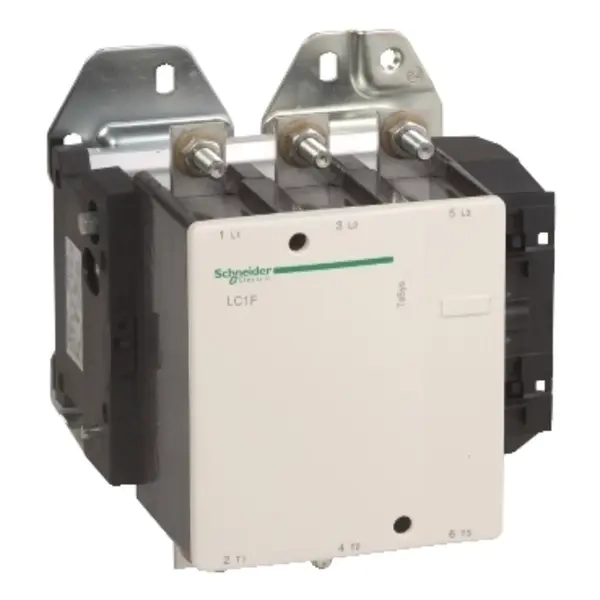

Motorski sklopnik TeSys F, 3P (3 NO), AC-3,

Additional information

Modular version	No
Rated operation power at AC-3, 400 V	250
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	500
Rated operation current Ie at AC-1, 400 V	700
Rated control supply voltage Us at AC 50HZ	- - -
Rated control supply voltage Us at AC 60HZ	- - -
Rated control supply voltage Us at DC	- - -
Type of electrical connection of main circuit	Bolt connection
Voltage type for actuating
Rated operation current Ie at AC-4, 400 V	0
Rated operation power Ie at AC-4, 400 V	80
