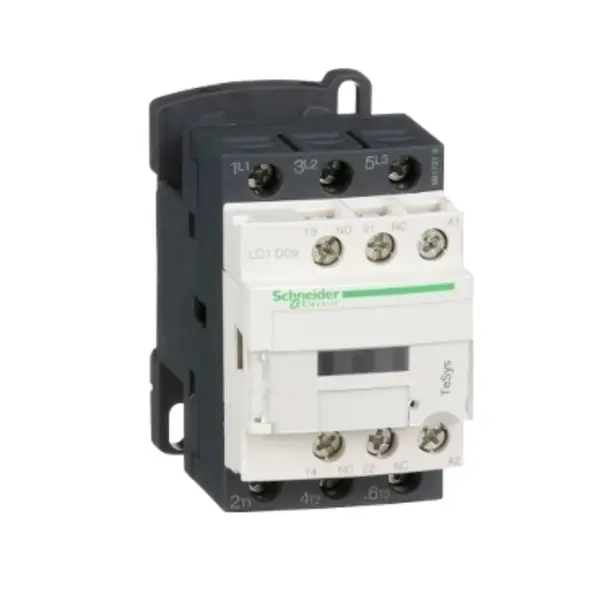

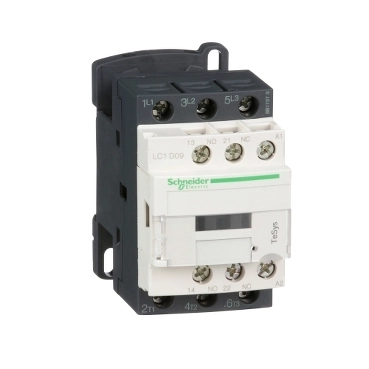

Motorski sklopnik TeSys D, 3P, 9A, 4 kW, 110 VAC, 1NO+1NC, vijčani

Cijena (bez PDV-a)

33,68

Šifra artikla: LC1D09F7

Raspoloživost: Na stanju

Additional information

Tip

Sklopnik

Broj polova

3

Kontakti

3NO

Napon svitka (V)

110VAC

Snaga AC3 (Kw)

4

In AC3 (A)

9

Modular version No
Rated operation power at AC-3, 400 V 4
Number of main contacts as normally open contact 3
Number of normally closed contacts as main contact 0
Number of auxiliary contacts as normally open contact 1
Number of auxiliary contacts as normally closed contact 1
Rated operation current Ie at AC-3, 400 V 9
Rated operation current Ie at AC-1, 400 V 25
Rated control supply voltage Us at AC 50HZ 110 - 110
Rated control supply voltage Us at AC 60HZ 110 - 110
Rated control supply voltage Us at DC - - -
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Rated operation current Ie at AC-4, 400 V 0
Rated operation power Ie at AC-4, 400 V 2
