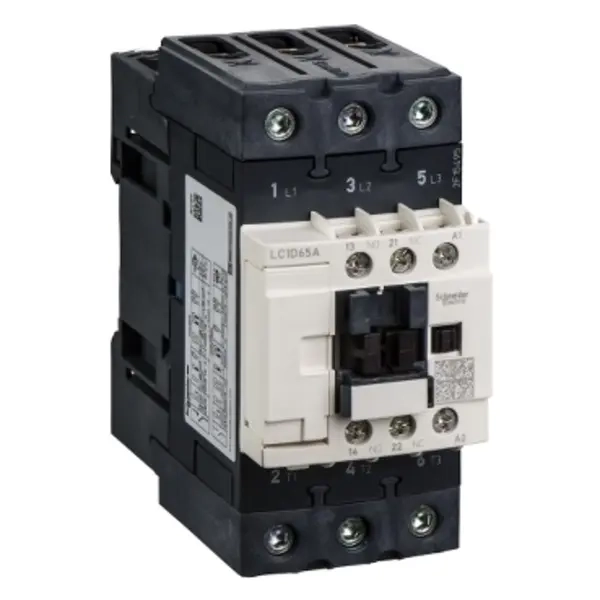

Motorski sklopnik TeSys D, 3P, 65A, 30 kW, 24 VAC, 1NO+1NC, EverLink
Cijena (bez PDV-a)
201,00€
Raspoloživost: Na upit
Additional information
| Tip | Sklopnik |
|---|---|
| Broj polova | 3 |
| Kontakti | 3NO |
| Napon svitka (V) | 24VAC |
| Snaga AC3 (Kw) | 30 |
| In AC3 (A) | 65 |
| Modular version | No |
|---|---|
| Rated operation power at AC-3, 400 V | 30 |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-3, 400 V | 65 |
| Rated operation current Ie at AC-1, 400 V | 80 |
| Rated control supply voltage Us at AC 50HZ | 24 - 24 |
| Rated control supply voltage Us at AC 60HZ | 24 - 24 |
| Rated control supply voltage Us at DC | - - - |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 0 |
| Rated operation power Ie at AC-4, 400 V | 11 |
