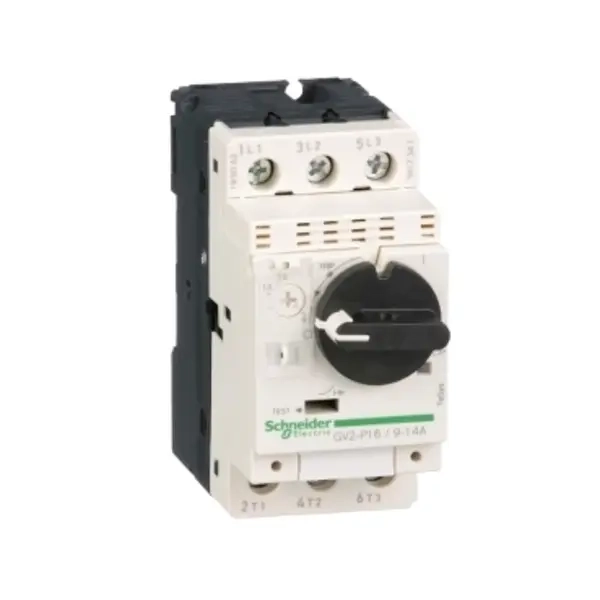

Motorski prekidač GV2P, termomagnetski, 9-14A, vijčani, zakretna ručica

Additional information

Tip	Motorske zaštitne sklopke
Područje zaštitie (A)	9-14

Width	45
Height	89
Depth	97
Thermal protection	Yes
Rated operation power at AC-3, 400 V	6
With integrated auxiliary switch	No
Rated permanent current Iu	14
With integrated under voltage release	No
Number of poles	3
Rated operating voltage	690 - 690
Overload release current setting	9 - 14
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Screw connection
Type of control element	Turn button
Switch off technique	Thermomagnetic
Rated operation power at AC-3, 230 V	0
Rated short-circuit breaking capacity lcu at 400 V, AC	100
Adjustment range undelayed short-circuit release	- - -
Phase failure sensitive	Yes
Device construction	Complete device in housing
