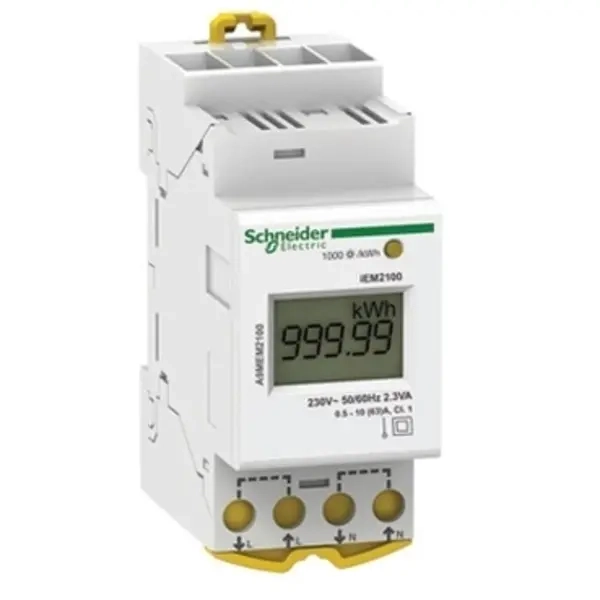

Modular single phase power meter iEM2100 – 230V – 63A

Mounting method	DRA (DIN-rail adapter)
Model	Direct measurement
Suitable for	Purchase
Type of indication	Digital
Frequency	45 - 65
Max. current (Imax)	63
Width in number of modular spacings	2
Number of positions total (counter)	5
Type of meter	Electronic
Degree of protection (IP)	IP50
Type of interface	None
Energy type	Effective power
Tariff type	Two-tariff
Tariff control
Escapement mechanism	No
Calibrated	No
Approval
Pulse output	None
Pulse type
Pulse rate	- - -
Accuracy class	B
Pole type	Single phase
Measuring type load profile	No
EEC40 signature	No
With lock code	No
Rated voltage (Un) N-L	184 - 276
Rated voltage (Un) L-L	- - -
Rated current (In)	63
