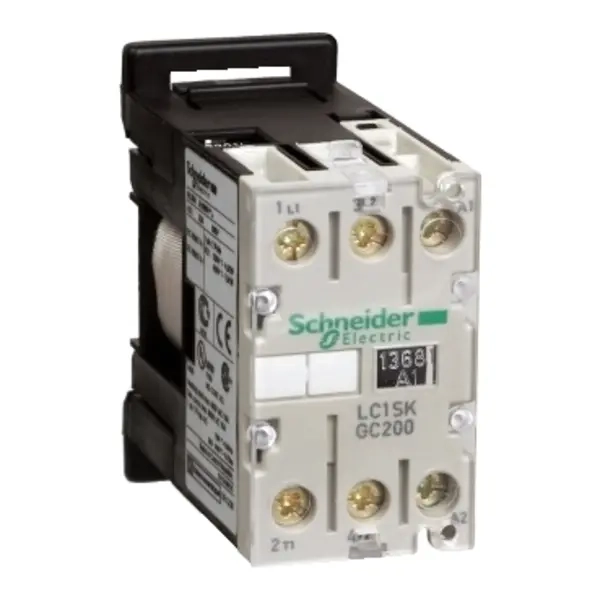

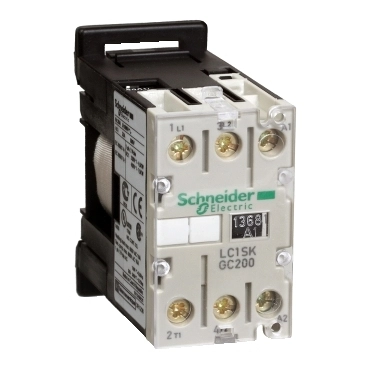

Mini Motorski sklopnik TeSys SK, 2P (2 NO), AC, 3, 690 V 5 A, zavojnica 220 V AC

Additional information

Modular version	Yes
Rated operation power at AC-3, 400 V	0
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	5
Rated operation current Ie at AC-1, 400 V	20
Rated control supply voltage Us at AC 50HZ	220 - 220
Rated control supply voltage Us at AC 60HZ	220 - 220
Rated control supply voltage Us at DC	- - -
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Rated operation current Ie at AC-4, 400 V	0
Rated operation power Ie at AC-4, 400 V	0
