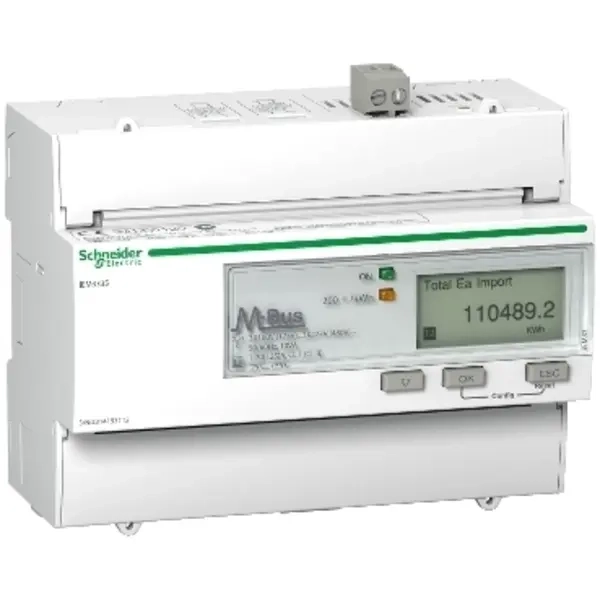

IEM3335 mjerač energije, 125 A, M, sabirnica, 1, digit., 1, digitalno O, višetarifno

Mounting method	DRA (DIN-rail adapter)
Model	Direct measurement
Suitable for	Purchase/supply
Type of indication	Digital
Frequency	50 - 60
Max. current (Imax)	125
Width in number of modular spacings	7
Number of positions total (counter)	9
Type of meter	Electronic
Degree of protection (IP)	IP20
Type of interface	M-bus
Energy type	Effective power and blind power
Tariff type	Multi-tariff
Tariff control	Internal/external
Escapement mechanism	No
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	Electrical
Pulse type	D0
Pulse rate	0 - 1000
Accuracy class	B
Pole type	Three conductor/four conductor
Measuring type load profile	No
EEC40 signature	No
With lock code	No
Rated voltage (Un) N-L	173 - 480
Rated voltage (Un) L-L	480 - 480
Rated current (In)	125
