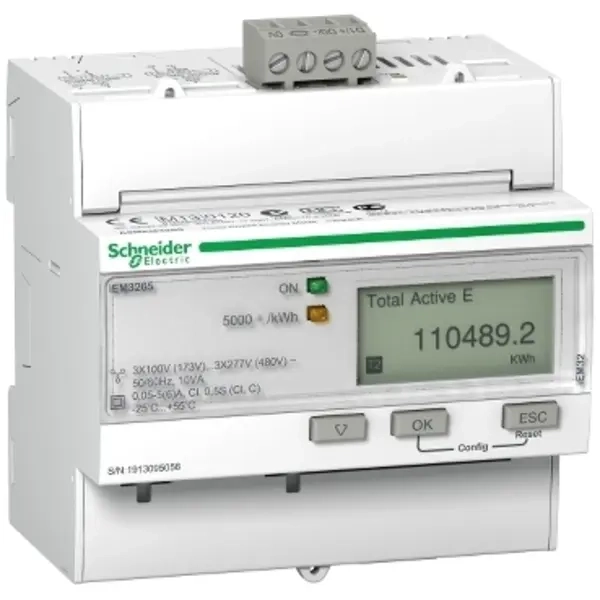

IEM3265 mjerač energije, CT, BACnet, 1, digitalno I, 1, digitalno O, višetarifno

Mounting method	DRA (DIN-rail adapter)
Model	Measurement transformer
Suitable for	Purchase/supply
Type of indication	Digital
Frequency	50 - 60
Max. current (Imax)	6
Width in number of modular spacings	5
Number of positions total (counter)	9
Type of meter	Electronic
Degree of protection (IP)	IP20
Type of interface	Other
Energy type	Effective power and blind power
Tariff type	Multi-tariff
Tariff control	Internal/external
Escapement mechanism	No
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	Electrical
Pulse type	D0
Pulse rate	0 - 500
Accuracy class	C
Pole type	Three conductor/four conductor
Measuring type load profile	No
EEC40 signature	No
With lock code	No
Rated voltage (Un) N-L	173 - 480
Rated voltage (Un) L-L	480 - 480
Rated current (In)	5
