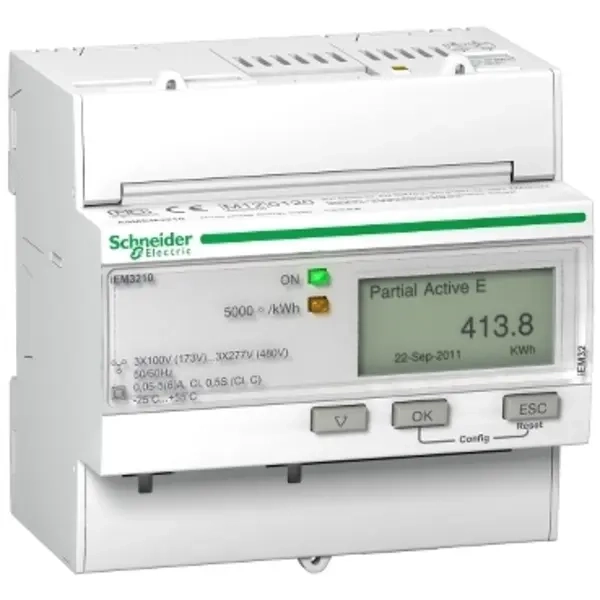

IEM3210 mjerač energije, CT, 1 puls O

Mounting method	DRA (DIN-rail adapter)
Model	Measurement transformer
Suitable for	Purchase/supply
Type of indication	Digital
Frequency	50 - 60
Max. current (Imax)	5
Width in number of modular spacings	5
Number of positions total (counter)	9
Type of meter	Electronic
Degree of protection (IP)	IP20
Type of interface	None
Energy type	Effective power
Tariff type	One-tariff
Tariff control
Escapement mechanism	No
Calibrated	Yes
Approval	Measuring Instruments Directive
Pulse output	Electrical
Pulse type	S0
Pulse rate	0 - 500
Accuracy class	C
Pole type	Three conductor/four conductor
Measuring type load profile	No
EEC40 signature	No
With lock code	No
Rated voltage (Un) N-L	173 - 480
Rated voltage (Un) L-L	480 - 480
Rated current (In)	5
