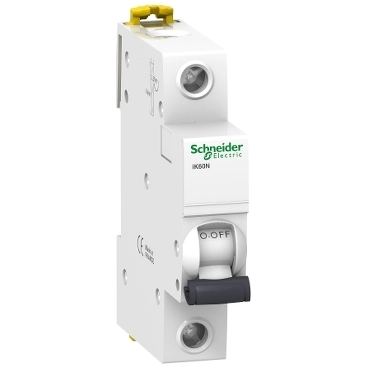

Automatski osigurač iK60N, 6kA, 1P, B, 32A

Cijena (bez PDV-a)

6,78

Šifra artikla: A9K23132

Raspoloživost: Na stanju

Dodatne informacije

In (A)

32

Broj polova

1

Icu (kA)

6

Krivulja okidanja

B

Voltage type AC
Built-in depth 79
Nominal rated current 32
Nominal rated voltage 0
Frequency 50 - 60
Release characteristic B
Current limiting class 3
Over voltage category 2
Pollution degree 2
Width in number of modular spacings 1
Degree of protection (IP) IP20
Number of protected poles 1
Concurrently switching N-neutral No
Suitable for flush-mounted installation No
Additional equipment possible No
Number of poles (total) 1
Rated short-circuit breaking capacity Icn EN 60898 at 400 V 0
Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0
