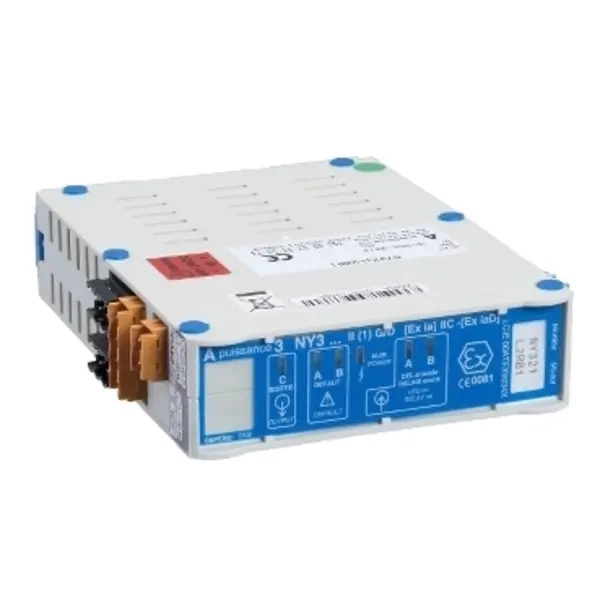

ATEX SIGURNOSNA BARIJERA

Mounting method	Other
Width	30
Height	120
Depth	90
Switching current	0
Number of channels	5
Power consumption	5
Switching power	0
Type of power supply	Active
Suitable for safety functions	Yes
Operation temperature	-20 - 60
Switching voltage	0
Switching frequency	0
Type of electric connection	Screw connection
Degree of protection (IP)	Other
Number of inputs, according to NAMUR	2
Number of inputs, potential-free	0
Number of output circuits opto-coupler	0
Output circuit relais normally open contact	0
Output circuit relais change-over contact	0
Number of output circuits transistor antivalent	0
Number of output circuits transistor npn	0
Number of output circuits transistor pnp	0
Number of output circuits transistor potential-free	0
Rated operation frequency	0 - 0
Rated supply voltage at AC	0 - 0
Rated supply voltage at DC	24 - 24
Inherently safe according to EN 60947-5-6 NAMUR	No
Primary voltage tolerance	0
Galvanic separation between output to output	Yes
Galvanic separation between input and output	Yes
Galvanic separation between inputs	Yes
Galvanic separation between supply voltage and all other current circuits	No
Construction type of device	Other
Performance level acc. to EN ISO 13849-1	Level a
Malfunction message output	No
SIL according to IEC 61508	1
