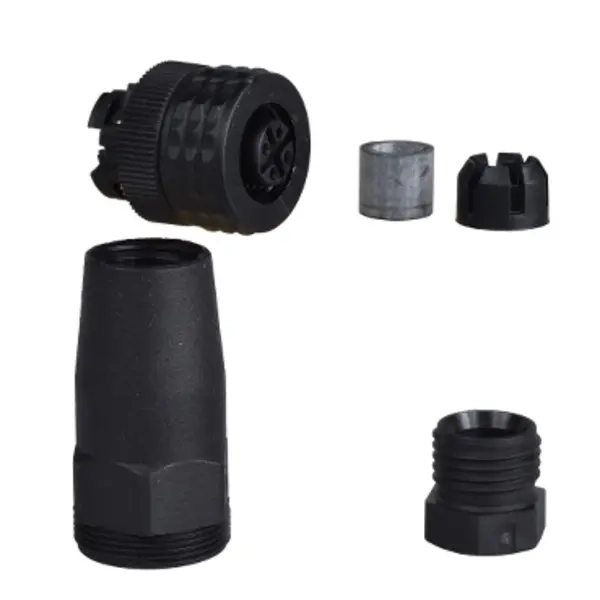

Ženski, M12, 4, pinski, ravni konektor, kabelska uvodnica Pg 7

Additional information

Tip	Pribor

Locking mechanism	None
Nominal rated voltage	125
Contact type	Pin
Material housing	Other
Ambient temperature	-40 - 85
Operation temperature	-40 - 85
Inflammability class of insulation material acc. with UL94	Other
Type of electric connection	Screw connection
Material of contact surface
Thread size M	0
Over voltage category
Pollution degree
Type of housing	Straight
Category for Ethernet cable
Connectable conductor cross section solid-core	0 - 75
Connectable conductor cross section fine-strand with cable end sleeve	0 - 75
Connectable conductor cross section fine-strand without cable end sleeve	0 - 75
Connectable conductor cross section multi-wired	0 - 75
With interlocking device	No
Degree of protection (IP), mounted	IP67
With protective conductor	No
Diameter connector	0
Material insulation body	Other
Material contact
Coding of M12-round connectors
Rated current In	3
Number of plug-in contacts	4
