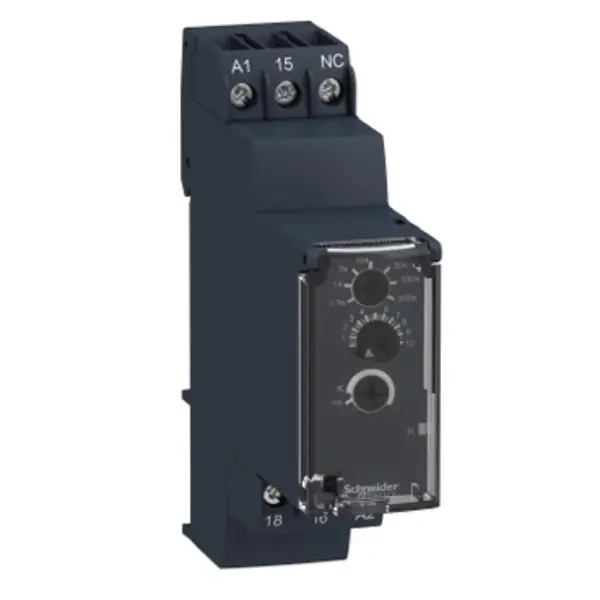

Višenam. vrem. relej s kašnjenjem isklopa-0,05s do 300s-24 do 240V AC/DC – 1C/O

Additional information

Tip	Vremenski relej sa kašnjenjem isklopa

Width	23
Height	90
Depth	73
With plug-in socket	No
Remote operation possible	No
Suitable only for remote control	No
Function flashing, starting with pause, fixed time	No
Function flashing, starting with pulse, fixed time	No
Clock function, starting with pause, variable	No
Clock function, starting with pulse, variable	No
With semiconductor output	No
Function delay-on energization	No
Function floating contact on energization	No
Function star-delta	No
Time range	0.05 - 300
Function delay on de-energization	Yes
Function floating contact on de-energization	Yes
Function pulse shaping	No
Type of electric connection	Screw connection
Rated control supply voltage Us at AC 50HZ	24 - 240
Rated control supply voltage Us at AC 60HZ	24 - 240
Rated control supply voltage Us at DC	24 - 240
Number of outputs, undelayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, change-over contact	0
Number of outputs, delayed, normally closed contact	1
Number of outputs, delayed, normally open contact	1
Number of outputs, delayed, change-over contact	1
Pluggable on auxiliary contact block	No
Outputs, reversible delayed/undelayed	No
Voltage type for actuating	AC/DC
