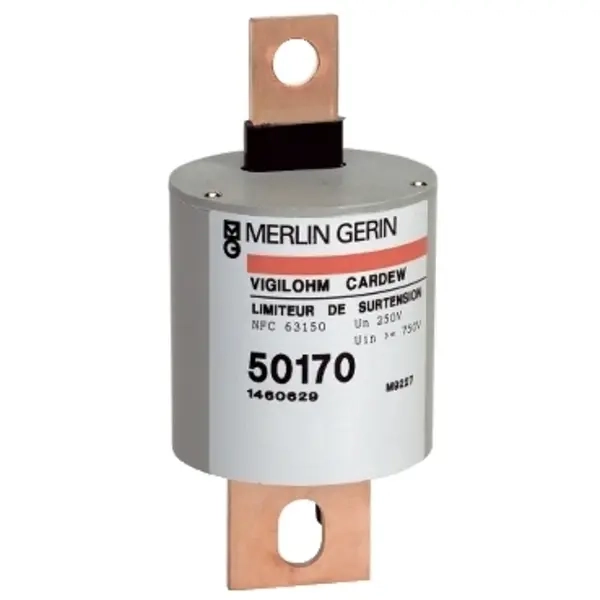

Uložak Cardew, tip C, 1000 V

Mounting method	On basic element
With remote signalling contact	No
Construction size	Other
Voltage protection level	2
Type of poles	1
Max. continuous voltage AC	1,560
Nominal discharge surge current (8/20)	40
Nominal voltage AC	1,000
Nominal voltage DC	0
System configuration	IT
Category type 2	No
Voltage protection level L-N	2
Signalling at the device	Optic
Max. continuous voltage DC	0
Degree of protection (IP)	Other
Short-circuit-proof	Yes
Max. PV-voltage	0
Voltage protection level N-PE	1
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	150
Max. conductor cross section flexible (fine-strand)	0
