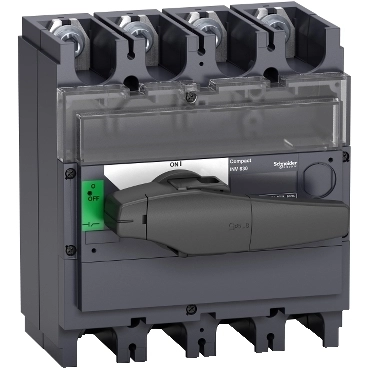

Učinski rastavljač vidljivog prekida Compact INV320, 320 A, 4 pola

Cijena (bez PDV-a)

361,00

Šifra artikla: 31169

Raspoloživost: Na upit

Additional information

Tip

Rastavna sklopka

In (A)

320

Broj polova

4

Rated operation power at AC-3, 400 V 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated permanent current Iu 320
Number of poles 4
Rated operating voltage 0 - 690
Conditioned rated short-circuit current Iq 150
Degree of protection (IP), front side IP40
Number of auxiliary contacts as change-over contact 4
Interlockable Yes
Motor drive integrated No
Type of electrical connection of main circuit Screw connection
Version as emergency stop installation No
Type of control element Long turning handle
Version as main switch Yes
Version as safety switch No
Version as maintenance-/service switch Yes
Rated operation power at AC-23, 400 V 160
Rated short-time withstand current lcw 20
Colour control element Black
Suitable for ground mounting Yes
Suitable for front mounting 4-hole Yes
Suitable for front mounting center Yes
Suitable for distribution board installation Yes
Suitable for intermediate mounting No
Max. rated operation voltage Ue AC 690
Motor drive optional No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V 320
Switching power at 400 V 0
Version as reversing switch No
