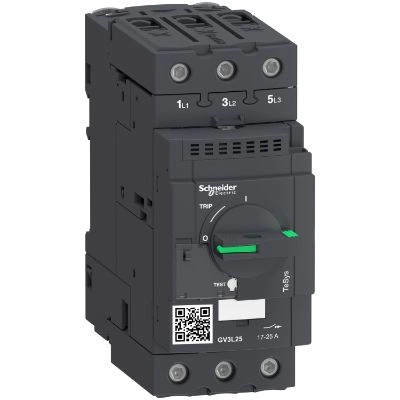

TeSys GV3, Prekidači, magnetski, 50 A, konektori EverLink BTR

Additional information

Tip	Motorska zaštitna sklopka
Područje zaštitie (A)	50 fixno

Width	55
Height	132
Depth	136
Thermal protection	No
Rated operation power at AC-3, 400 V	22
With integrated auxiliary switch	No
Rated permanent current Iu	50
With integrated under voltage release	No
Number of poles	3
Rated operating voltage	690 - 690
Overload release current setting	- - -
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Screw connection
Type of control element	Turn button
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	0
Rated short-circuit breaking capacity lcu at 400 V, AC	50
Adjustment range undelayed short-circuit release	- - -
Phase failure sensitive	Yes
Device construction	Complete device in housing
