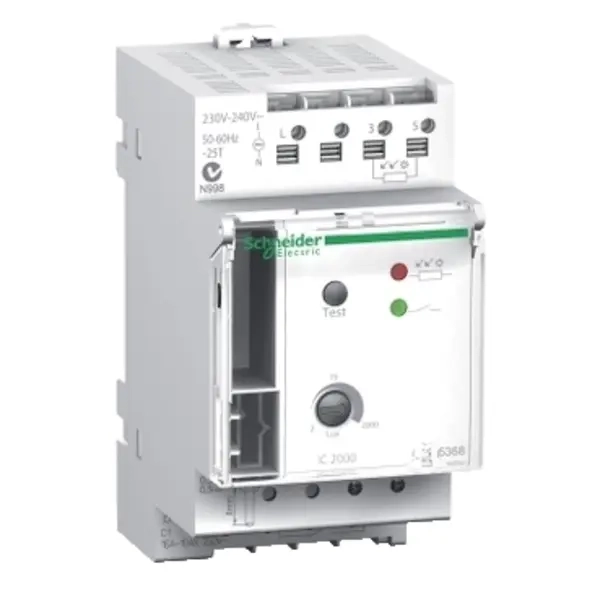

SVJETLOSNA SKLOPKA IC2000+ĆELIJA

Mounting method	DIN rail
Built-in depth	65
Nominal rated voltage	230
Nominal rated frequency	50 - 60
Width in number of modular spacings	3
Rated voltage light sensor	0
Max. switching current (cos phi = 0.6)	10
Max. incandescent lamp load	2,300
Max. conductor length light sensor	100
Max. load fluorescent lamp	2,300
Max. load fluorescent lamp (Duo circuit)	2,300
Max. load fluorescent lamp (parallel compensated)	1,000
With programmable overnight shutoff	No
Degree of protection (IP) light sensor	IP54
Push button input	No
Degree of protection (IP)	IP20
Rated switch current	16
Adjustment range brightness value	2 - 2000
Protection class light sensor	II
Mounting method light sensor	Wall mounted
