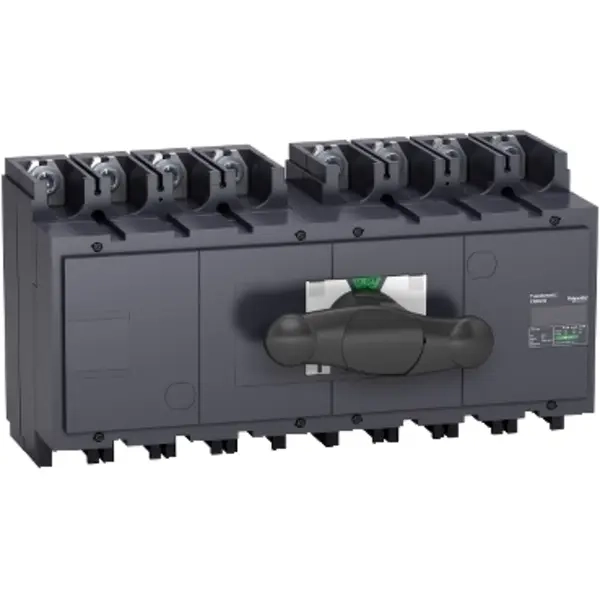

Ručna preklopka izvora INS500, 4 pola, 500 A

Model	On/Off switch
Rated operation power at AC-3, 400 V	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	500
Number of poles	4
Rated operation current Ie at AC-3, 400 V	0
With 0 (off) position	Yes
With retraction in 0-position	No
Degree of protection (IP), front side	IP40
Number of auxiliary contacts as change-over contact	0
Type of electrical connection of main circuit	Screw connection
Type of control element	Long turning handle
Suitable for ground mounting	No
Suitable for front mounting 4-hole	No
Suitable for distribution board installation	No
Suitable for intermediate mounting	No
Complete device in housing	Yes
