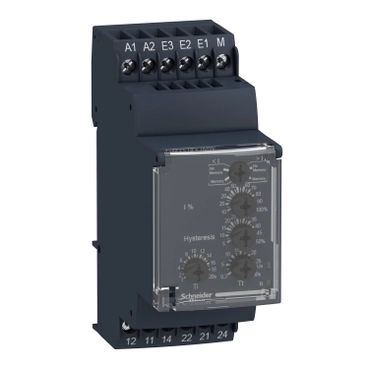

Relej za kontrolu struje RM35-J, raspon 0,15..1,5 mA

Additional information

Tip	Relej za nadzor struje

Width	35
Height	90
Depth	72
Current measurement range	0.15 - 15
With detachable clamps	No
Single-phase hysteresis possible	No
Three-phase hysteresis possible	No
Single-phase under current possible	No
Three-phase under current possible	Yes
Single-phase over current possible	No
Three-phase over current possible	Yes
Contains function DC-voltage under current	No
Contains function DC-voltage over current	No
Function DC-current hysteresis	No
Type of electric connection	Other
Rated control supply voltage Us at AC 50HZ	24 - 240
Rated control supply voltage Us at AC 60HZ	24 - 240
Rated control supply voltage Us at DC	24 - 240
Max. permitted delay-on energization time	20
Min. adjustable delay-on energization time	1
Max. permitted off-delay time	30
Min. adjustable off-delay time	0
Voltage type for actuating	AC/DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	2
