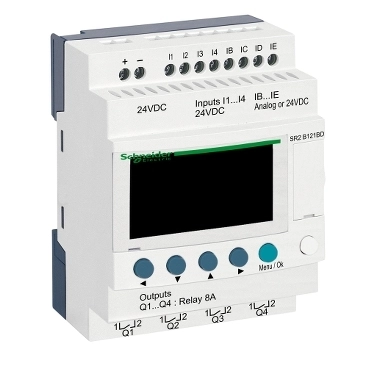

RELEJ PROG. KOMPAKT 12 I-O 24 VDC SAT

Cijena (bez PDV-a)

1.207,00kn (160,20 )

Šifra artikla: SR2B121BD

Raspoloživost: Na upit

Dodatne informacije

Tip

Kompaktni logički kontroler

Width 71
Height 90
Depth 60
Expandable No
Switching current 8
With timer Yes
With display Yes
Suitable for safety functions No
Number of digital inputs 8
Number of digital outputs 4
Number of analogue inputs 4
Number of analogue outputs 0
Voltage type of supply voltage DC
Supporting protocol for LON No
Number of HW-interfaces industrial Ethernet 0
Number of HW-interfaces RS-232 1
Number of HW-interfaces RS-422 0
Number of HW-interfaces RS-485 0
Number of HW-interfaces serial TTY 0
Number of HW-interfaces USB 0
Number of HW-interfaces parallel 0
Number of HW-interfaces other 1
With optical interface No
Supporting protocol for TCP/IP No
Supporting protocol for ASI No
Supporting protocol for PROFIBUS No
Supporting protocol for CAN No
Supporting protocol for INTERBUS No
Supporting protocol for KNX No
Supporting protocol for MODBUS No
Supporting protocol for Data-Highway No
Supporting protocol for DeviceNet No
Supporting protocol for SUCONET No
Supporting protocol for other bus systems No
Redundancy No
With relay output Yes
Rail mounting possible Yes
Explosion safety category for gas None
Explosion safety category for dust None
Appendant operation agent (Ex ia) No
Appendant operation agent (Ex ib) No
Degree of protection (IP) IP20
Supporting protocol for SERCOS No
Supporting protocol for INTERBUS-Safety No
Category according to EN 954-1 1
Number of HW-interfaces PROFINET 0
Number of HW-interfaces Wireless 0
Front build in possible Yes
Rack-assembly possible No
Wall mounting/direct mounting Yes
Expansion device No
Radio standard Bluetooth No
Radio standard WLAN 802.11 No
Basic device Yes
IO link master No
Performance level acc. to EN ISO 13849-1 None
Supporting protocol for AS-Interface Safety at Work No
Supporting protocol for DeviceNet Safety No
Supporting protocol for EtherNet/IP No
Supporting protocol for Foundation Fieldbus No
Supporting protocol for PROFINET CBA No
Supporting protocol for PROFINET IO No
Supporting protocol for PROFIsafe No
Supporting protocol for SafetyBUS p No
Supply voltage AC 50 Hz 0 - 0
Supply voltage AC 60 Hz 0 - 0
Supply voltage DC 24 - 24
Radio standard GPRS No
Radio standard GSM No
Radio standard UMTS No
SIL according to IEC 61508 None
