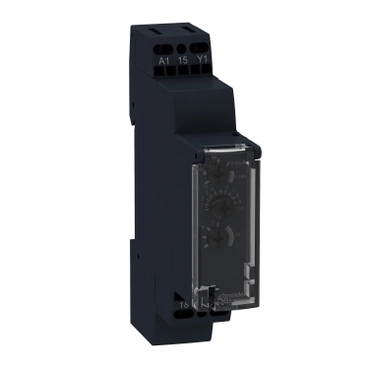

Vremenski relej, 8 funkcija – 1 s…100 sati – 24…240 V AC/DC – 1 OC

Cijena (bez PDV-a)

60,51

Šifra artikla: RE17RMEMU

Raspoloživost: Na upit

Dodatne informacije

Tip

Multifunkcijski relej

Width 18
Height 90
Depth 72
With plug-in socket No
Remote operation possible No
Suitable only for remote control No
Function flashing, starting with pause, fixed time Yes
Function flashing, starting with pulse, fixed time Yes
Clock function, starting with pause, variable Yes
Clock function, starting with pulse, variable Yes
With semiconductor output No
Function delay-on energization Yes
Function floating contact on energization Yes
Function star-delta No
Time range 0.1 - 36000
Function delay on de-energization Yes
Function floating contact on de-energization Yes
Function pulse shaping No
Type of electric connection Screw connection
Rated control supply voltage Us at AC 50HZ 24 - 240
Rated control supply voltage Us at AC 60HZ 24 - 240
Rated control supply voltage Us at DC 24 - 24
Number of outputs, undelayed, normally closed contact 0
Number of outputs, undelayed, normally open contact 0
Number of outputs, undelayed, change-over contact 1
Number of outputs, delayed, normally closed contact 0
Number of outputs, delayed, normally open contact 0
Number of outputs, delayed, change-over contact 1
Pluggable on auxiliary contact block No
Outputs, reversible delayed/undelayed No
Voltage type for actuating AC/DC
