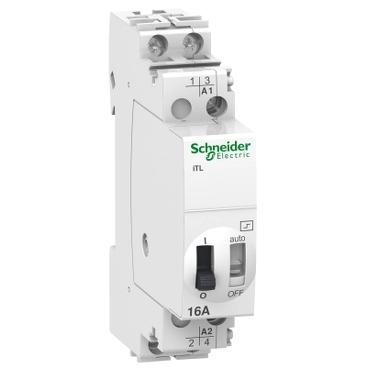

Relej impulsni iTL 16A, 2NO, 24V 50/60Hz, 12VDC

Additional information

Mounting method	DIN rail
Function	Mechanical switch
Built-in depth	60
Number of normally open contacts	2
Number of normally closed contacts	0
Number of change-over contacts	0
Width in number of modular spacings	1
Control voltage 1	24 - 24
Control voltage 2	12 - 12
Type of control voltage 1	AC
Type of control voltage 2	DC
Frequency control voltage 1	50 - 50
Frequency control voltage 2	- - -
Voltage type of supply voltage	AC
Supply voltage	24 - 250
Max. switching current (cos phi = 0.6)	16
Max. incandescent lamp load	1,600
Max. load fluorescent lamp	1,300
Max. load fluorescent lamp (Duo circuit)	2,000
Max. load fluorescent lamp (parallel compensated)	900
Manual operation possible	Yes
Rated switch current	16
