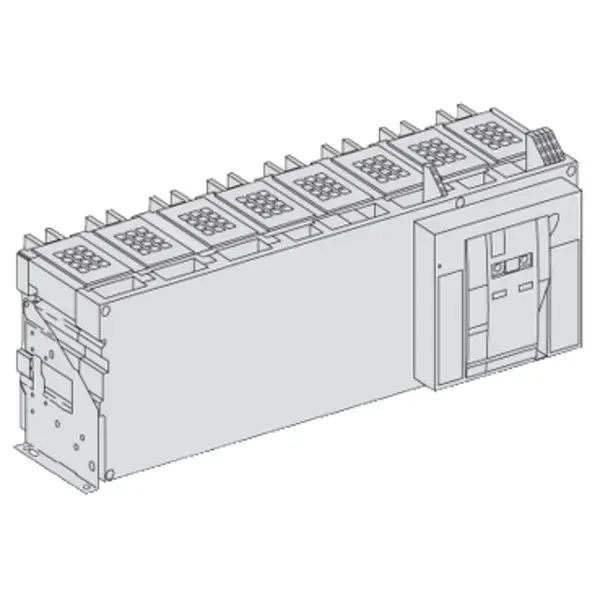

Rastavna sklopka Masterpact NW63HA, 6300 A, 690 V, 4 pola, fiksan

Cijena (bez PDV-a)

52.382,00

Šifra artikla: 48123

Raspoloživost: Na upit

Additional information

Tip

Rastavna sklopka

In (A)

6300

Broj polova

4

Icu (kA)

4

Način ugradnje

Fiksni

Rated operation power at AC-3, 400 V 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated permanent current Iu 6,300
Number of poles 4
Rated operating voltage - - -
Conditioned rated short-circuit current Iq 85
Degree of protection (IP), front side IP30
Number of auxiliary contacts as change-over contact 5
Interlockable Yes
Motor drive integrated No
Type of electrical connection of main circuit Screw connection
Version as emergency stop installation No
Type of control element Push button
Version as main switch No
Version as safety switch No
Version as maintenance-/service switch No
Rated operation power at AC-23, 400 V 0
Rated short-time withstand current lcw 0
Colour control element
Suitable for ground mounting Yes
Suitable for front mounting 4-hole No
Suitable for front mounting center No
Suitable for distribution board installation No
Suitable for intermediate mounting No
Max. rated operation voltage Ue AC 690
Motor drive optional Yes
Voltage release optional Yes
Device construction Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V 0
Switching power at 400 V 0
Version as reversing switch No
