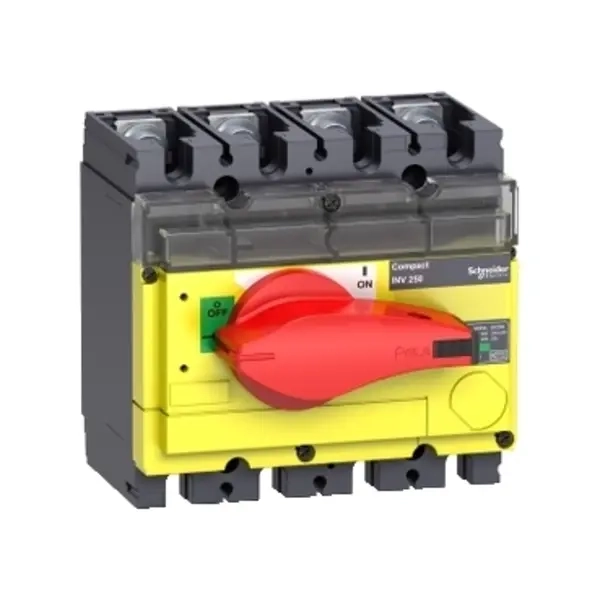

RASTAVNA SKLOPKA INV200 4P CRVENA RUČ.

Cijena (bez PDV-a)

146,73

Šifra artikla: 31183

Raspoloživost: Na upit

Additional information

Tip

Rastavna sklopka

In (A)

200

Broj polova

4

Rated operation power at AC-3, 400 V 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated permanent current Iu 200
Number of poles 4
Rated operating voltage 0 - 690
Conditioned rated short-circuit current Iq 36
Degree of protection (IP), front side IP40
Number of auxiliary contacts as change-over contact 2
Interlockable Yes
Motor drive integrated No
Type of electrical connection of main circuit Screw connection
Version as emergency stop installation Yes
Type of control element Long turning handle
Version as main switch Yes
Version as safety switch No
Version as maintenance-/service switch Yes
Rated operation power at AC-23, 400 V 90
Rated short-time withstand current lcw 9
Colour control element Red
Suitable for ground mounting Yes
Suitable for front mounting 4-hole Yes
Suitable for front mounting center Yes
Suitable for distribution board installation Yes
Suitable for intermediate mounting No
Max. rated operation voltage Ue AC 690
Motor drive optional No
Voltage release optional No
Device construction Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V 200
Switching power at 400 V 0
Version as reversing switch No
