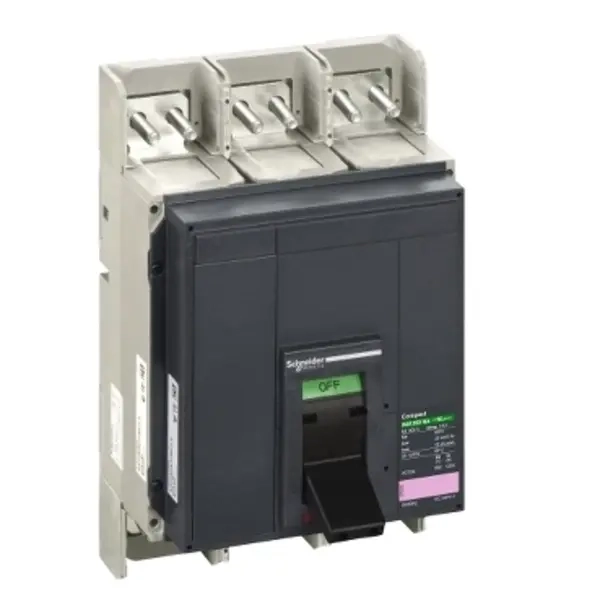

Rastavna sklopka Compact NS1250 NA, 1250 A, 3 pola

Additional information

Rated operation power at AC-3, 400 V	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	1,250
Number of poles	3
Rated operating voltage	220 - 690
Conditioned rated short-circuit current Iq	47
Degree of protection (IP), front side	IP40
Number of auxiliary contacts as change-over contact	5
Interlockable	Yes
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Type of control element	Toggle
Version as main switch	Yes
Version as safety switch	No
Version as maintenance-/service switch	Yes
Rated operation power at AC-23, 400 V	0
Rated short-time withstand current lcw	25
Colour control element	Black
Suitable for ground mounting	No
Suitable for front mounting 4-hole	Yes
Suitable for front mounting center	No
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Max. rated operation voltage Ue AC	690
Motor drive optional	No
Voltage release optional	Yes
Device construction	Built-in device slide-in technique (withdrawable)
Rated permanent current at AC-21, 400 V	0
Switching power at 400 V	0
Version as reversing switch	No
