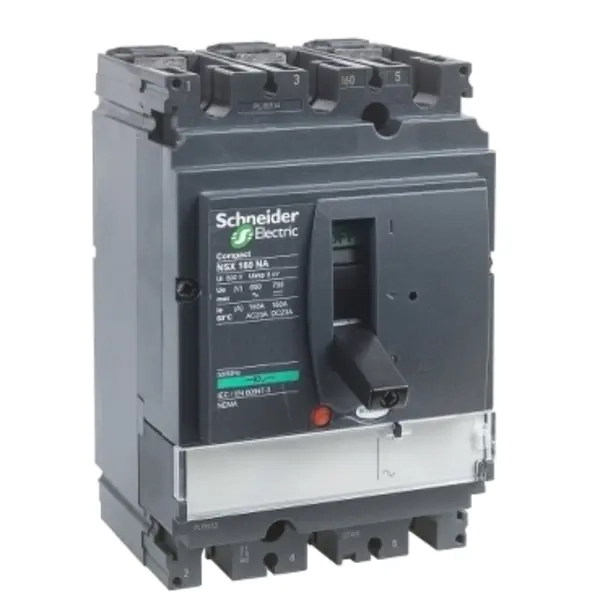

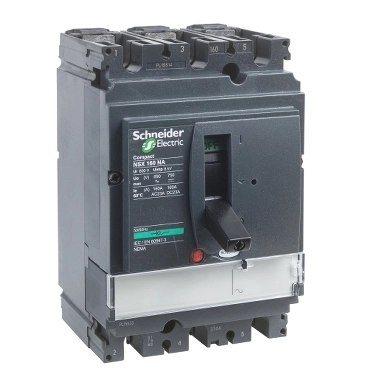

RASTAVNA SKLOPKA 3P NSX160NA

Additional information

Rated operation power at AC-3, 400 V	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	160
Number of poles	3
Rated operating voltage	0 - 690
Conditioned rated short-circuit current Iq	150
Degree of protection (IP), front side	IP30
Number of auxiliary contacts as change-over contact	0
Interlockable	Yes
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Type of control element	Rocker lever
Version as main switch	No
Version as safety switch	No
Version as maintenance-/service switch	No
Rated operation power at AC-23, 400 V	0
Rated short-time withstand current lcw	3
Colour control element	Black
Suitable for ground mounting	Yes
Suitable for front mounting 4-hole	No
Suitable for front mounting center	No
Suitable for distribution board installation	No
Suitable for intermediate mounting	No
Max. rated operation voltage Ue AC	690
Motor drive optional	Yes
Voltage release optional	Yes
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	0
Switching power at 400 V	0
Version as reversing switch	No
