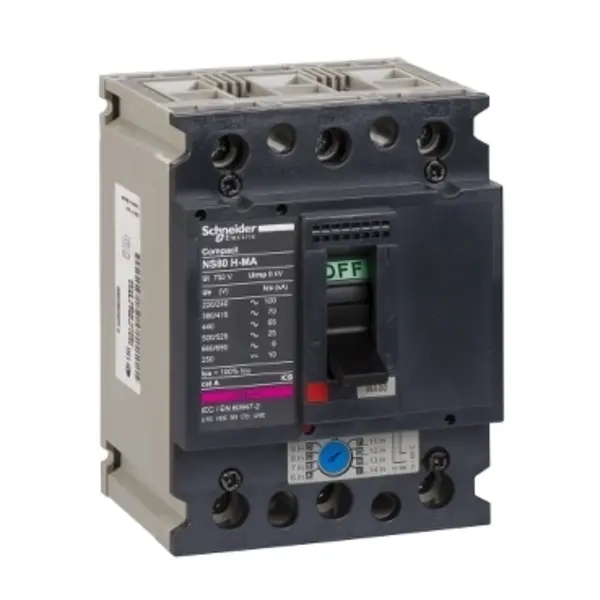

PREKIDAČ NS80H MA80 3P3D

Additional information

Tip	Motorski prekidač

Width	90
Height	120
Depth	80
Thermal protection	No
Rated operation power at AC-3, 400 V	37
With integrated auxiliary switch	No
Rated permanent current Iu	80
With integrated under voltage release	Yes
Number of poles	3
Rated operating voltage	220 - 690
Overload release current setting	6 - 14
Degree of protection (IP)	IP40
Type of electrical connection of main circuit	Screw connection
Type of control element	Other
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	37
Rated short-circuit breaking capacity lcu at 400 V, AC	70
Adjustment range undelayed short-circuit release	480 - 1120
Phase failure sensitive	No
Device construction	Built-in device fixed built-in technique
