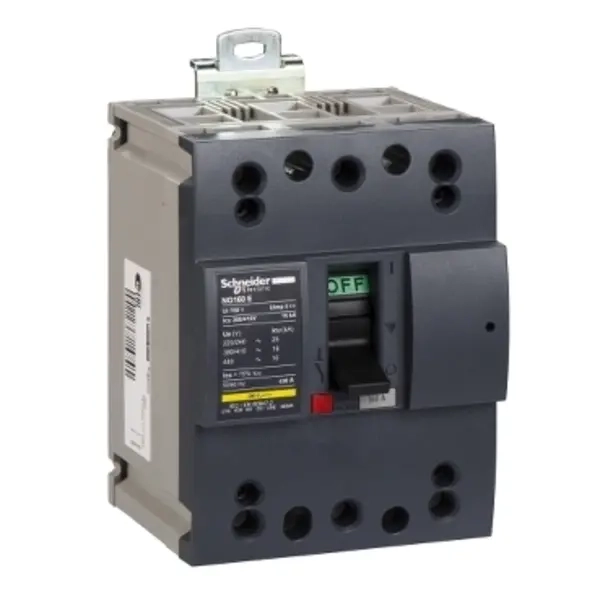

PREKIDAČ NG160E TM160D 3P3D

Additional information

Voltage type	AC
Built-in depth	83
Nominal rated current	160
Nominal rated voltage	500
Frequency	50 - 60
Release characteristic
Current limiting class	0
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	5
Degree of protection (IP)	IP20
Number of protected poles	3
Concurrently switching N-neutral	No
Suitable for flush-mounted installation	No
Additional equipment possible	Yes
Number of poles (total)	3
Rated short-circuit breaking capacity Icn EN 60898 at 400 V	16
Rated short-circuit breaking capacity Icn EN 60898 at 230 V	25
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V	25
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V	16
