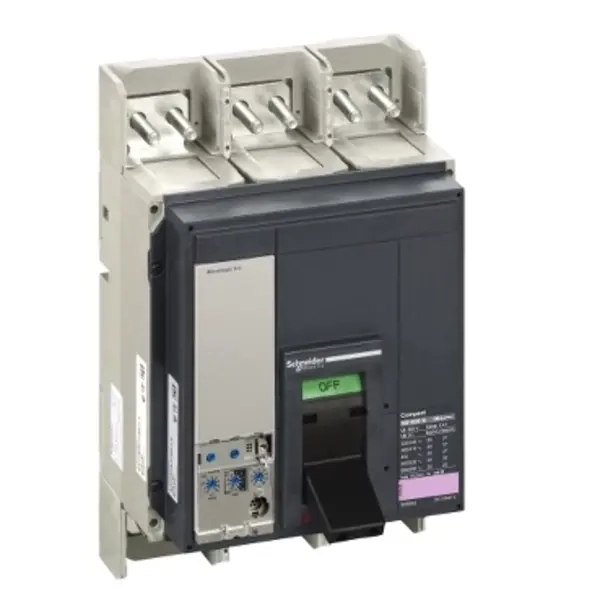

Prekidač Compact NS1600N, Micrologic 5,0, 1600 A, 3 pola 3t

Cijena (bez PDV-a)

5.027,00

Šifra artikla: 33568

Raspoloživost: Na upit

Additional information

Tip

Prekidač

In (A)

1600

Tip zaštite

Micrologic 5.0

Broj polova

3

Icu (kA)

50

Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated permanent current Iu 1,600
Number of poles 3
Overload release current setting 640 - 1600
Number of auxiliary contacts as change-over contact 0
Rated voltage 690 - 690
Degree of protection (IP) IP40
Position of connection for main current circuit
Motor drive integrated No
Type of electrical connection of main circuit Screw connection
Type of control element Toggle
Switched-off indicator available Yes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 50
Adjustment range short-term delayed short-circuit release 1.5 - 10
Adjustment range undelayed short-circuit release 3200 - 24000
Suitable for DIN rail (top hat rail) mounting No
Integrated earth fault protection Yes
Motor drive optional Yes
With under voltage release No
Device construction Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional No
Complete device with protection unit Yes
