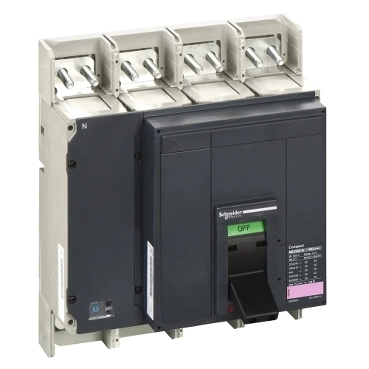

Prekidač Compact NS1250H, 1250 A, 4 pola, zračni – bez zaštitne jedinice

Additional information

Tip	Prekidač

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	1,250
Number of poles	4
Overload release current setting	- - -
Number of auxiliary contacts as change-over contact	0
Rated voltage	690 - 690
Degree of protection (IP)	IP30
Position of connection for main current circuit	Front side
Motor drive integrated	Yes
Type of electrical connection of main circuit	Bolt connection
Type of control element	Push button
Switched-off indicator available	No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	70
Adjustment range short-term delayed short-circuit release	- - -
Adjustment range undelayed short-circuit release	- - -
Suitable for DIN rail (top hat rail) mounting	No
Integrated earth fault protection	No
Motor drive optional	No
With under voltage release	No
Device construction	Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional	No
Complete device with protection unit	No
