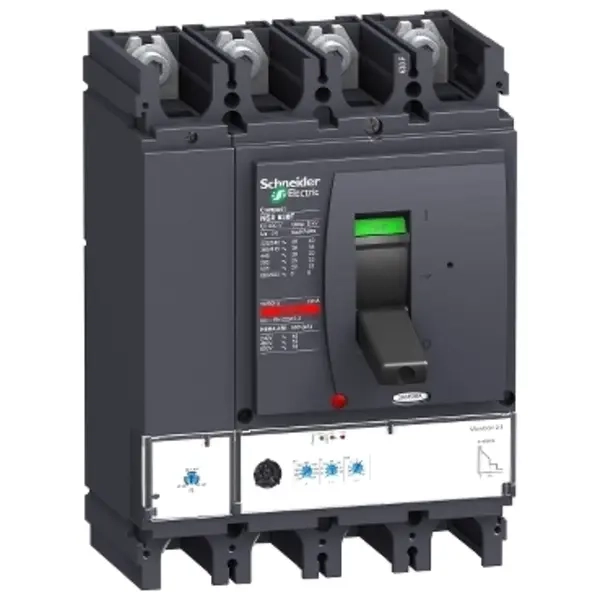

PREKIDAČ 4P4D MLOGIC 2.3 630A NSX630H

Cijena (bez PDV-a)

1.978,10

Šifra artikla: LV432896

Raspoloživost: Na upit

Additional information

Tip

Prekidač

In (A)

630

Tip zaštite

Micrologic2.3

Broj polova

4

Icu (kA)

70

Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated permanent current Iu 630
Number of poles 4
Overload release current setting 225 - 630
Number of auxiliary contacts as change-over contact 0
Rated voltage 690 - 690
Degree of protection (IP) IP30
Position of connection for main current circuit Front side
Motor drive integrated No
Type of electrical connection of main circuit Screw connection
Type of control element Rocker lever
Switched-off indicator available No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 70
Adjustment range short-term delayed short-circuit release 338 - 6900
Adjustment range undelayed short-circuit release 6900 - 6900
Suitable for DIN rail (top hat rail) mounting No
Integrated earth fault protection No
Motor drive optional Yes
With under voltage release No
Device construction Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional No
Complete device with protection unit Yes
