Additional information

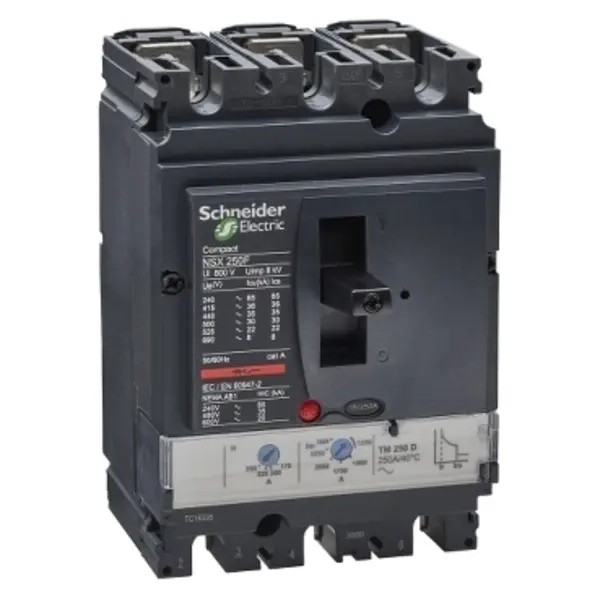

| Tip | Prekidač |
|---|---|
| In (A) | 250 |
| Tip zaštite | TM-D |
| Broj polova | 3 |
| Icu (kA) | 36 |
| Number of auxiliary contacts as normally open contact | 0 |
|---|---|
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 250 |
| Number of poles | 3 |
| Overload release current setting | 175 - 250 |
| Number of auxiliary contacts as change-over contact | 0 |
| Rated voltage | 690 - 690 |
| Degree of protection (IP) | IP30 |
| Position of connection for main current circuit | Front side |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Rocker lever |
| Switched-off indicator available | No |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 36 |
| Adjustment range short-term delayed short-circuit release | 1250 - 2500 |
| Adjustment range undelayed short-circuit release | 1250 - 2500 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Integrated earth fault protection | No |
| Motor drive optional | Yes |
| With under voltage release | No |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | No |
| Complete device with protection unit | Yes |
