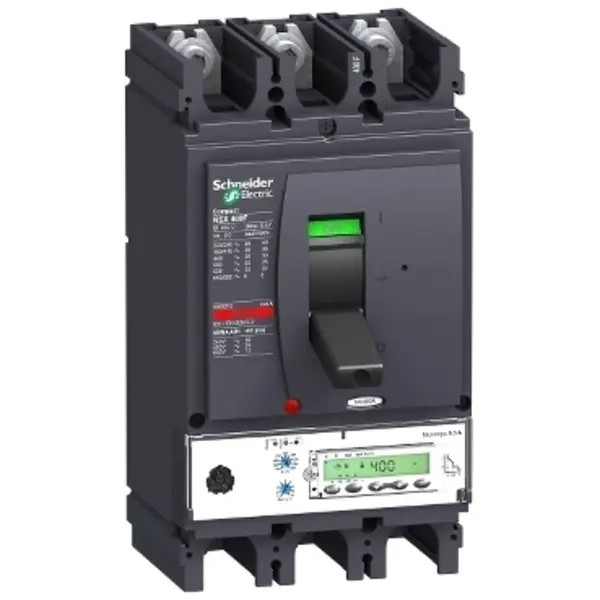

PREKIDAČ 3P3D MLOGIC 5.3 A 400A NSX400F

Cijena (bez PDV-a)

1.416,68

Šifra artikla: LV432678

Raspoloživost: Na upit

Additional information

Tip

Prekidač

In (A)

400

Tip zaštite

Micrologic5.3

Broj polova

3

Icu (kA)

36

Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated permanent current Iu 400
Number of poles 3
Overload release current setting 100 - 400
Number of auxiliary contacts as change-over contact 0
Rated voltage 690 - 690
Degree of protection (IP) IP30
Position of connection for main current circuit Front side
Motor drive integrated No
Type of electrical connection of main circuit Screw connection
Type of control element Rocker lever
Switched-off indicator available No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 36
Adjustment range short-term delayed short-circuit release 216 - 4000
Adjustment range undelayed short-circuit release 600 - 4800
Suitable for DIN rail (top hat rail) mounting No
Integrated earth fault protection No
Motor drive optional Yes
With under voltage release No
Device construction Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional No
Complete device with protection unit Yes
