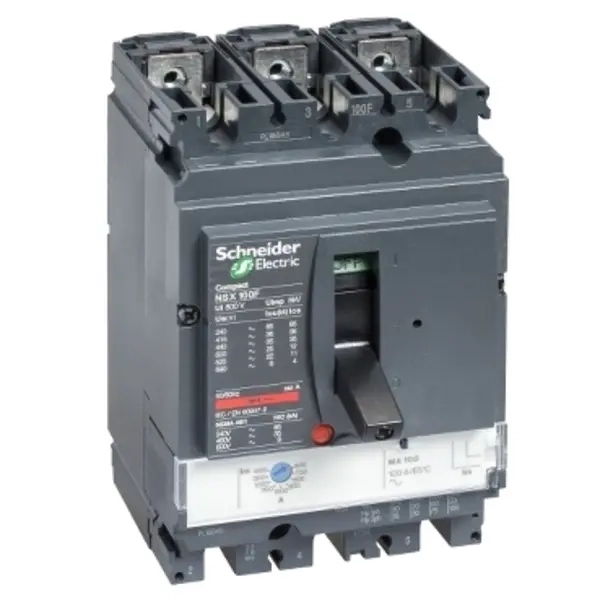

PREKIDAČ 3P3D MA2.5 NSX100N

Additional information

Width	105
Height	161
Depth	86
Thermal protection	No
Rated operation power at AC-3, 400 V	0
With integrated auxiliary switch	No
Rated permanent current Iu	100
With integrated under voltage release	No
Number of poles	3
Rated operating voltage	690 - 690
Overload release current setting	- - -
Degree of protection (IP)	IP40
Type of electrical connection of main circuit	Screw connection
Type of control element	Other
Switch off technique	Magnetic
Rated operation power at AC-3, 230 V	0
Rated short-circuit breaking capacity lcu at 400 V, AC	50
Adjustment range undelayed short-circuit release	15 - 35
Phase failure sensitive	No
Device construction	Built-in device fixed built-in technique
