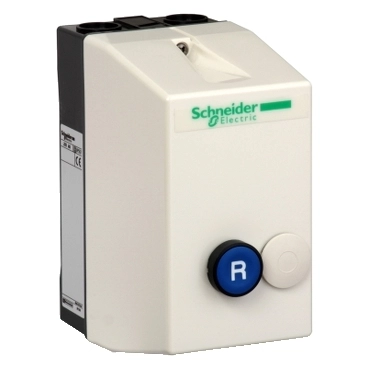

POKRETAČ MOTORSKI 9A
Cijena (bez PDV-a)
59,99€
Raspoloživost: Na upit
Podatkovni listDodatne informacije
| Tip | Motorski pokretač |
|---|
| Rated operation power at AC-3, 400 V | 4 |
|---|---|
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie | 9 |
| Overload release current setting | - - - |
| Supporting protocol for LON | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for MODBUS | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Rail mounting possible | No |
| Rated control supply voltage Us at AC 50HZ | 400 - 400 |
| Rated control supply voltage Us at AC 60HZ | 400 - 400 |
| Rated control supply voltage Us at DC | - - - |
| Degree of protection (IP) | IP65 |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Release class | |
| With short-circuit release | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Voltage type for actuating | AC |
| Kind of motor starter | Direct starter |
| Rated operation power at AC-3, 230 V, 3-phase | 2 |
| Rated power, 460 V, 60 Hz, 3-phase | 0 |
| Rated power, 575 V, 60 Hz, 3-phase | 0 |
| Rated operation current at AC-3, 400 V | 9 |
| Ambient temperature, , upper operating limit | 40 |
| Temperature compensated overload protection | No |
| Rated conditional short-circuit current, type 2, 400 V | 0 |
| Rated conditional short-circuit current, type 2, 230 V | 0 |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | 0 |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | 0 |
