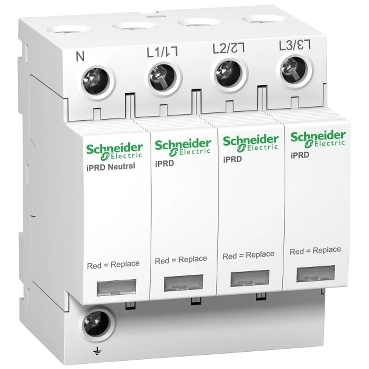

Odvodnik prenapona iPRD40r, 3P+N, 350V, sa signalom
Cijena (bez PDV-a)
130,00€
Raspoloživost: Na stanju
Additional information
| Tip | Odvodnik |
|---|---|
| Broj polova | 3P+N |
| Imax (kA) | 40 |
| Mounting method | DIN rail (top hat rail) 35 mm |
|---|---|
| With remote signalling contact | Yes |
| Construction size | 8 modular spacing |
| Voltage protection level | 1 |
| Type of poles | 3+N/PE |
| Max. continuous voltage AC | 350 |
| Nominal discharge surge current (8/20) | 15 |
| Nominal voltage AC | 400 |
| Nominal voltage DC | 0 |
| System configuration | TN-S, TT |
| Category type 2 | Yes |
| Voltage protection level L-N | 1 |
| Signalling at the device | Optic |
| Max. continuous voltage DC | 0 |
| Degree of protection (IP) | IP20 |
| Short-circuit-proof | Yes |
| Max. PV-voltage | 0 |
| Voltage protection level N-PE | 1 |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 25 |
| Max. conductor cross section flexible (fine-strand) | 16 |
