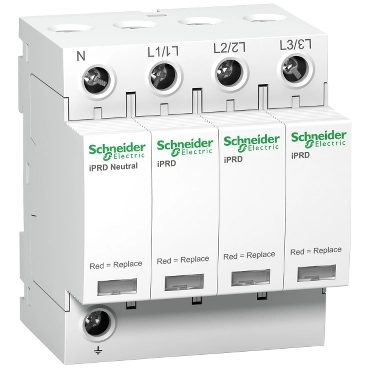

Odvodnik prenapona iPRD40, 3P+N, 350V

Additional information

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	No
Construction size	8 modular spacing
Voltage protection level	1
Type of poles	3+N/PE
Max. continuous voltage AC	350
Nominal discharge surge current (8/20)	15
Nominal voltage AC	350
Nominal voltage DC	0
System configuration	TN-S, TT
Category type 2	Yes
Voltage protection level L-N	1
Signalling at the device	Optic
Max. continuous voltage DC	0
Degree of protection (IP)	IP20
Short-circuit-proof	Yes
Max. PV-voltage	0
Voltage protection level N-PE	1
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	35
Max. conductor cross section flexible (fine-strand)	35
